HOME
Products | Highly-Functional Products | Semiconductor Containers
6-inch Antistatic transparent case <FB15C002>

Products

Highly-Functional Products | Semiconductor Containers

FB15C002

6-inch

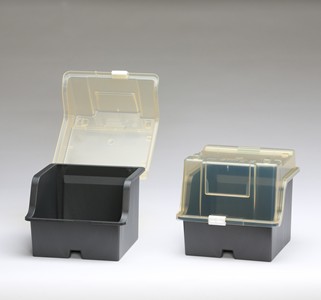

Antistatic transparent case <FB15C002>

Characteristics

The Paragon Case FB15C002 uses e-mateX® FB-0215 series material for the cover and e-mateX® FB-0437 material for the body, providing cover transparency and body abrasion resistance that conventional PP and PBT cases do not offer.
Since the body employs the highly abrasion-resistant e-mateX® FB-0437 material (carrier material), it is recommended for advanced production lines where even extremely small particles can be an issue.
In addition, the front side of the cover opens widely, making it easy to insert and remove carriers.
The barcode labels on carriers can also be read with a scanner without opening the cover.
The cover and body are connected by a hinge.

Specifications

External Dimensions	Cover: overall width: 221.8mm, overall length: 219mm, sealed surface to top: 43mm Body: overall width: 215.8mm, overall length: 213mm, bottom to sealed surface: 159mm
Card Holder	Card holder on the top cover, or no card holder equipped
Hinge	Case with or without hinges
Material	Cover: FB-0215 (transparent) Body: FB-0437 (black)

Download drawings (PDF)
